Pressure and pump-down
State the target pressure, allowable pump-down time, process gas load, test duration and venting needs.
Vacuum System Enclosures
Vacuum Chambers for Controlled Process and Test Environments
A useful chamber brief connects the required vacuum environment with internal volume, access, ports, materials, loads and the rest of the pumping system.
Application-led selection
Configuration confirmed before supply
PRODUCT OVERVIEW

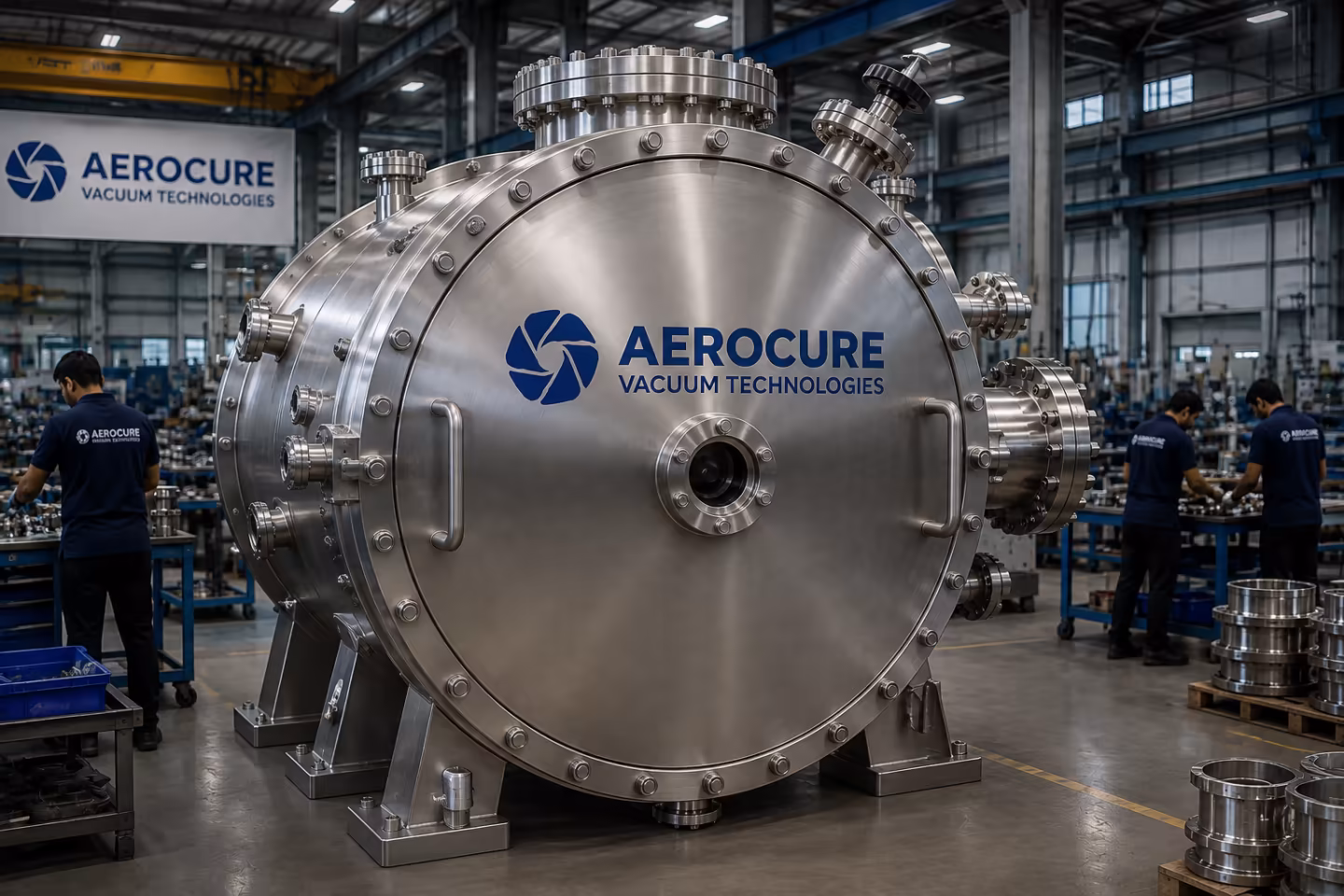

About Vacuum Chambers for Controlled Process and Test Environments
A vacuum chamber is a sealed enclosure in which pressure is reduced for a process, test or research activity. Chamber geometry affects usable space, access and structural behaviour, while material, surface condition, seals and internal hardware affect gas load and achievable performance.
The chamber cannot be selected in isolation. Pumping speed at the chamber, port conductance, instrumentation, feedthroughs, doors, fixtures and process vapours all influence pump-down and operation. A requirement review should therefore cover both the vessel and its interfaces with the complete system.
TECHNICAL SELECTION
Selection Factors to Confirm
Final suitability depends on the application and the selected product's approved technical documentation.
Size and access
Define usable internal dimensions, payload, loading method, door arrangement and required maintenance access.
Materials and process
Identify temperature, cleanliness, outgassing, chemical exposure, surface-treatment and seal requirements.
Ports and integration
List pump ports, gauge locations, feedthroughs, windows, fixtures, utilities and control interfaces.
APPLICATION FIT
Typical Application Areas
These examples guide the initial discussion; technical fit is confirmed from the actual process and operating conditions.
- Component qualification and environmental testing
- Vacuum drying, degassing and impregnation processes
- Research, coating and material-development systems
- Helium leak-test fixtures and enclosed test arrangements
TECHNICAL NOTE
Confirm the Application Before Final Selection
Vacuum loads can place substantial force on a chamber and closure. Mechanical design, fabrication, seals, guarding and operating procedures require competent engineering review for the actual dimensions, pressure differential, temperature and duty.
BUYER QUESTIONS
Vacuum Chambers for Controlled Process and Test Environments FAQs
Provide the target pressure, internal dimensions or payload, process temperature and gas, desired pump-down time, access method, ports, feedthroughs, materials and any applicable site or design requirements.
Volume is important, but it is not the only factor. Gas load, leakage, conductance, target pressure, process vapour and pump-down time also influence the pumping arrangement.
They affect access, conductance, leak tightness, serviceability and material compatibility. Port count and location should be planned around pumps, gauges, fixtures and operating access.
APPLICATION REVIEW
Need Help Selecting the Right Configuration?
Share the operating range, process media, duty, connection and control requirements available to you. Aerocure will review the request before confirming a suitable next step.
