Pressure and effective speed
Define target pressure, pump-down time and gas throughput, then account for conductance between the pump and chamber.
Vacuum Generation Equipment
Vacuum Pumps Selected for the Process, Not Just the Nameplate
The right vacuum pump depends on the pressure, gas load and operating duty at the system—not simply the largest nominal pumping-speed figure.
Application-led selection
Configuration confirmed before supply
PRODUCT OVERVIEW
About Vacuum Pumps Selected for the Process, Not Just the Nameplate

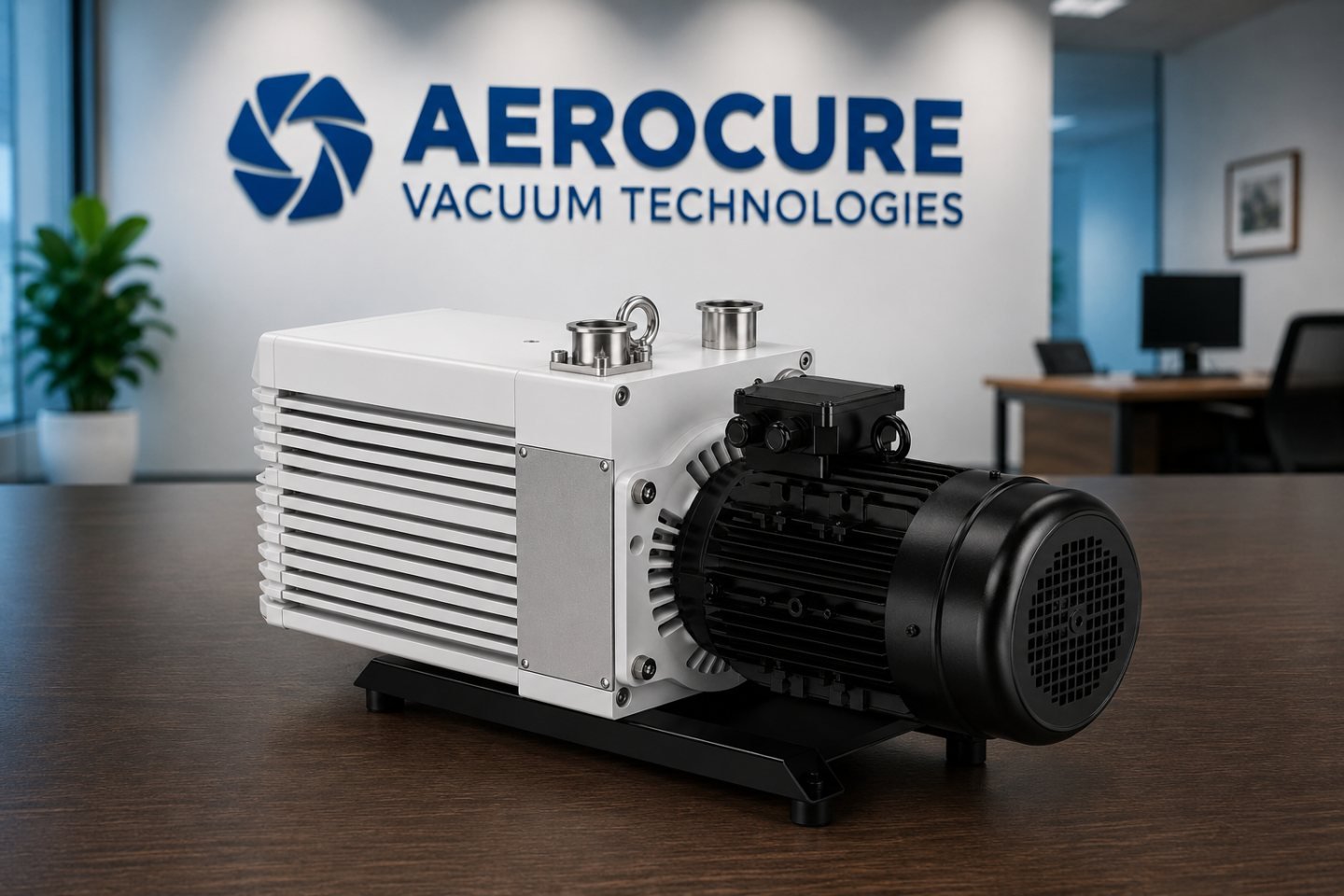

A vacuum pump removes gas from an enclosed volume to create and maintain reduced pressure. Different pump principles operate effectively in different pressure regions and respond differently to vapour, particles, corrosive gases, oil backstreaming, continuous duty and frequent cycling.
Selection should consider the pressure and flow required at the application, including losses through pipework and valves. The review should also cover process compatibility, exhaust management, noise, cooling, electrical supply, maintenance access and whether backing or secondary pumping stages are needed.
TECHNICAL SELECTION
Selection Factors to Confirm
Final suitability depends on the application and the selected product's approved technical documentation.
Process compatibility
Identify gases, vapours, particles, condensate and cleaning agents that may influence pump technology and protection.
Operating duty
Share batch frequency, continuous-running expectations, cycling, inlet conditions and any standby requirement.
Utilities and maintenance
Confirm power, cooling, exhaust, noise constraints, installation space and the planned service environment.
APPLICATION FIT
Typical Application Areas
These examples guide the initial discussion; technical fit is confirmed from the actual process and operating conditions.
- Industrial vacuum processing and material handling
- Laboratory instruments and research systems
- Vacuum chambers, drying and degassing equipment
- Backing duties for compatible higher-vacuum pumps
TECHNICAL NOTE
Confirm the Application Before Final Selection
Published pumping speed is measured at the pump inlet under defined conditions. Pipe diameter, length, valves, filters and pressure region determine the effective speed available at the chamber.
BUYER QUESTIONS
Vacuum Pumps Selected for the Process, Not Just the Nameplate FAQs
Start with target pressure, chamber volume, pump-down time and continuous gas load. Then review line conductance, process vapours, operating duty and utilities; volume alone is not enough.
Ultimate pressure is a pump performance endpoint under specified test conditions. Operating pressure is the pressure the real system reaches while handling leakage, outgassing and process gas loads.
That depends on pressure, gas compatibility, contamination tolerance, exhaust treatment, maintenance and total operating needs. The process conditions must be reviewed before choosing either approach.
APPLICATION REVIEW
Need Help Selecting the Right Configuration?
Share the operating range, process media, duty, connection and control requirements available to you. Aerocure will review the request before confirming a suitable next step.
TECHNICAL ENQUIRY
Discuss This Product Requirement
Share the equipment identity, operating conditions, connection details and required result. Include what is known so the next step can be reviewed.
